L2 Managed PoE Switch
Industrial grade management type 4-optical 8-electrical switch

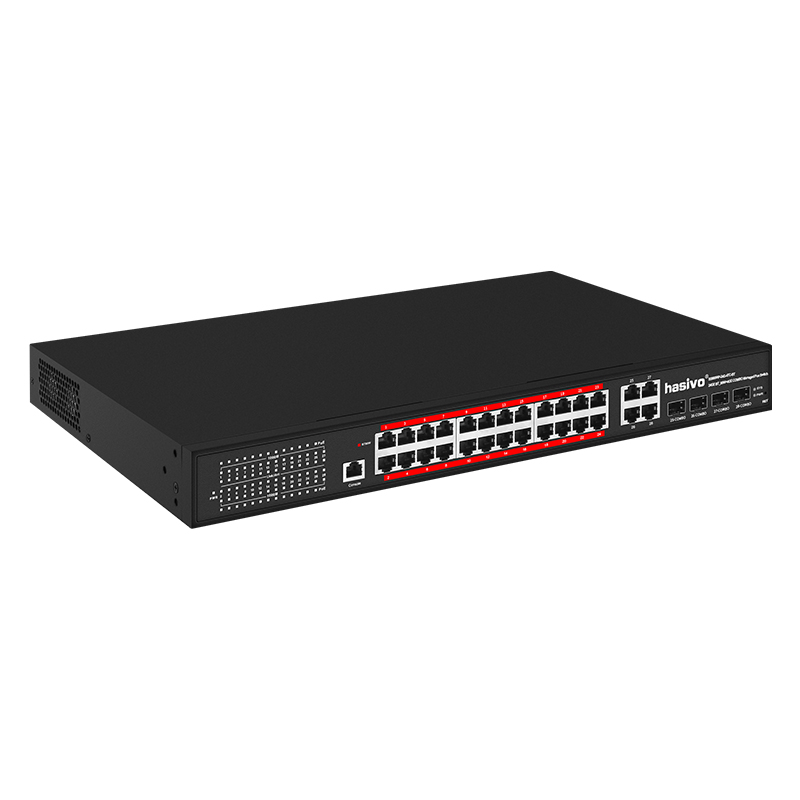

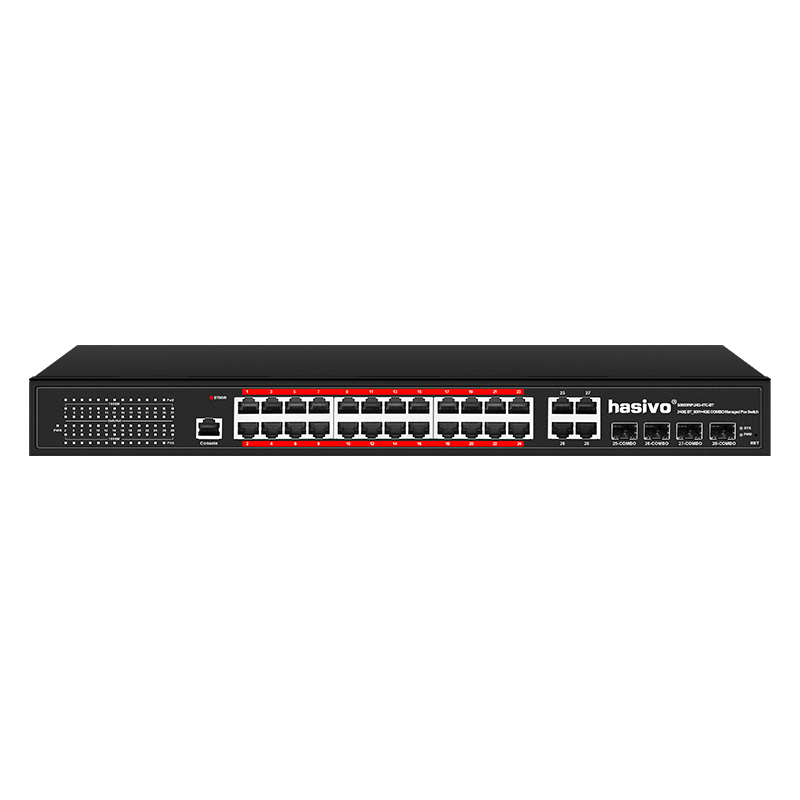

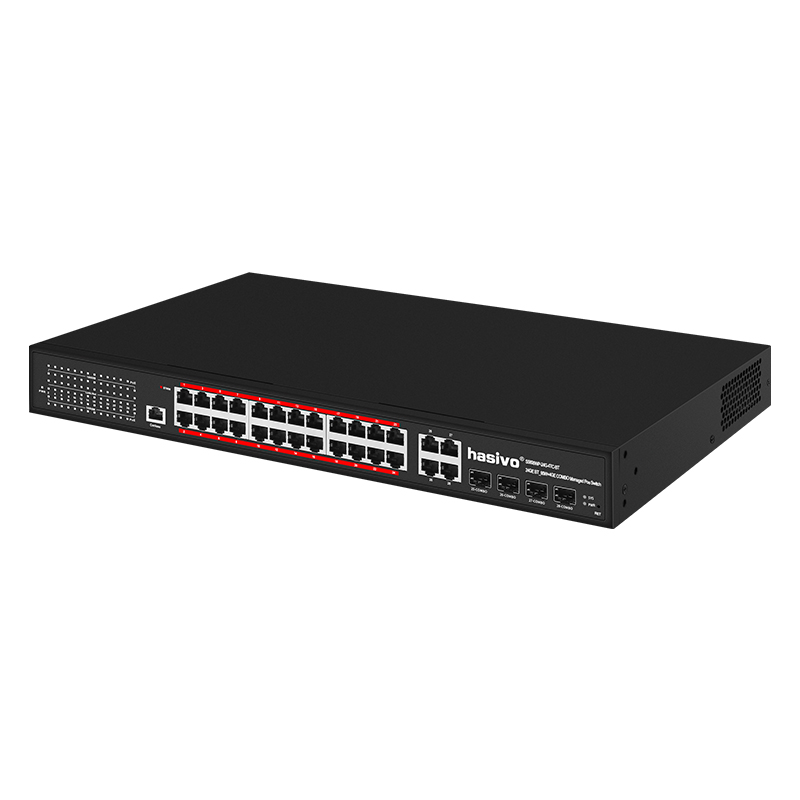

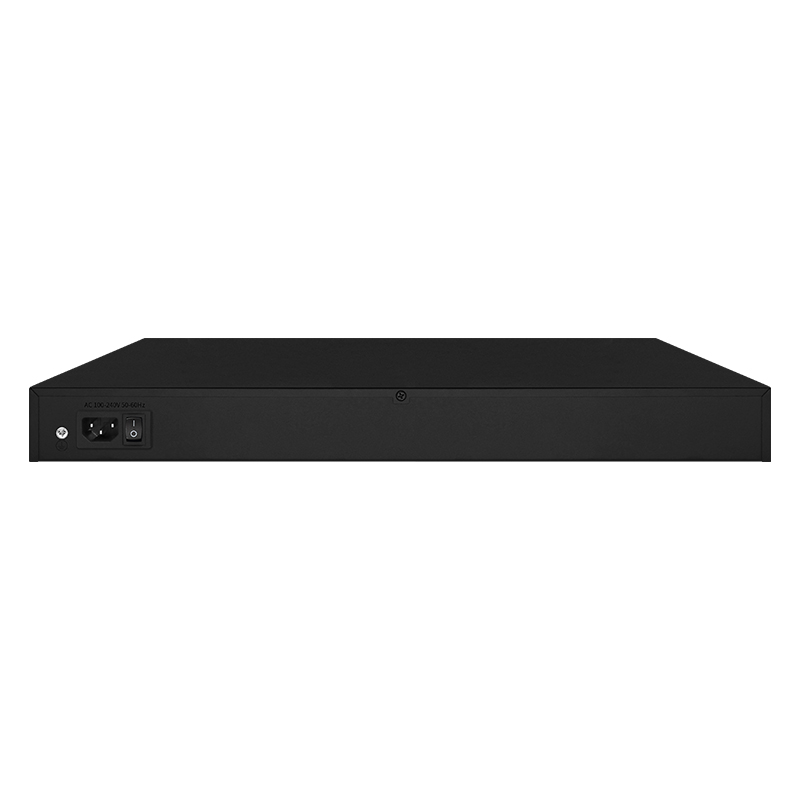

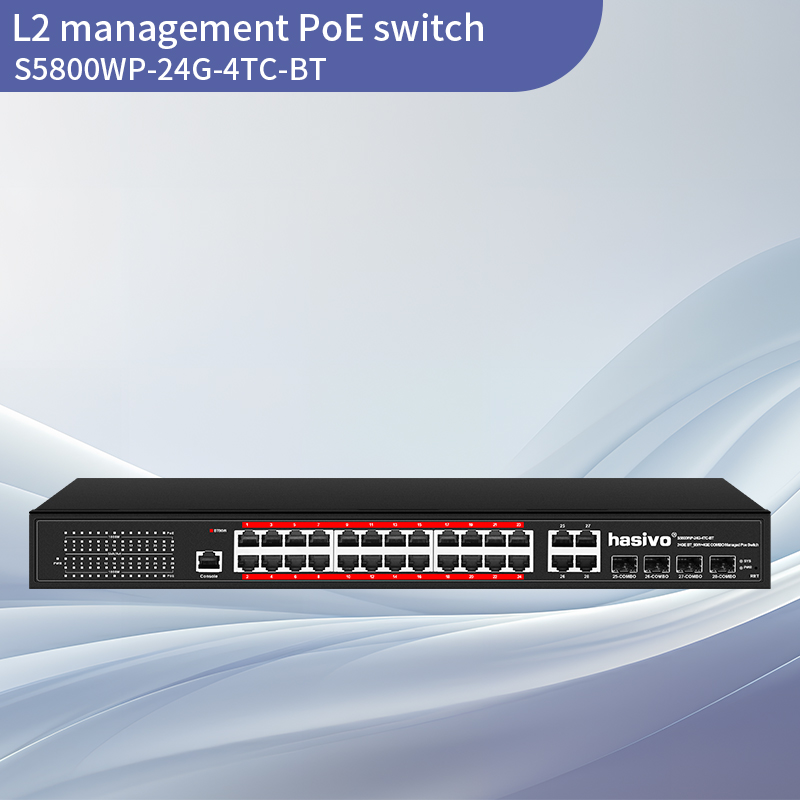

The S5800WP-24G-4TC-BT is a newly launched full gigabit layer 2 network management PoE switch by Hasivo. It adopts a new generation of high-performance hardware and software platforms, providing flexible and cost-effective full gigabit access and uplink ports, supporting complete security protection mechanisms, perfect ACL/QoS policies, and flexible VLAN functions. It is easy to manage and maintain, meeting users' networking needs for easy management, high security, and low cost of network equipment. It is suitable for campus, hotel, and enterprise park network access and aggregation of various application scenarios.
Full Gigabit Ethernet port
The entire series supports the combination of "Ethernet port+optical port", which facilitates flexible networking for users and meets the networking needs of various scenarios; 1-24 port supports IEEE802.3af/at/poe++/bt, Max 90W PoE out, all ports support line speed forwarding, with high-speed bandwidth processing capability. Each port allows data packets to be transmitted between connected devices such as computers, sensors, cameras, and other networked devices. Switches manage data flow to ensure efficient communication.
Strong business capabilities
Supports IEEE 802.1Q VLANs, allowing users to flexibly partition VLANs according to their needs. Supports QoS, supports three priority modes based on ports, 802.1P, and DSCP, supports ACL, filters data packets through configuring matching rules, processing operations, and time permissions, and provides flexible security access control policies. Supports IGMP V1/V2 multicast protocol and IGMP Snooping, meeting the requirements of multi terminal high-definition video surveillance and video conferencing access. Support multicast VLAN and multicast filtering, efficiently transmit data, save network bandwidth, and reduce network load.
Diverse reliability protection
The switch supports STP/RSTP/MSTP spanning tree protocols to eliminate Layer 2 loops and ensure link backup. It includes security features to protect against various forms of malicious attacks within the spanning tree network. Additionally, it supports both static and dynamic link aggregation, effectively increasing link bandwidth, achieving load balancing, and enhancing link reliability.
