Fiber Optic Aggregation Switch
01
view
detail
Full Gigabit 8+2 Fiber Switch
2025-03-31
- Provide 8*10/100/1000M adaptive RJ45 port, all ports can achieve line speed forwarding
- Provide 2*100/1000M built-in integrated optical port (optional single-mode single fiber/dual fiber, customizable FC)
- Adopting wavelength division multiplexing technology, the transmission wavelength is 1310nm, the reception wavelength is 1550nm, and the maximum transmission distance is up to 20KM
- Supports IEEE 802.3x full duplex flow control and Backpressure half duplex flow control
- Each port supports MDI/MDIX automatic flipping and duplex/rate self negotiation
01
view
detail
Full Gigabit 8+1 Fiber Switch
2025-03-31
- Provide 8*10/100/1000M adaptive RJ45 port, all ports can achieve line speed forwarding
- Provide 1*100/1000M built-in integrated optical port (optional single-mode single fiber/dual fiber, customizable FC)
- Adopting wavelength division multiplexing technology, the transmission wavelength is 1310nm, the reception wavelength is 1550nm, and the maximum transmission distance is up to 20KM
- Supports IEEE 802.3x full duplex flow control and Backpressure half duplex flow control
- Each port supports MDI/MDIX automatic flipping and duplex/rate self negotiation
01
view
detail
Full Gigabit 4+2 Fiber Switch
2025-03-31
- Provide 4*10/100/1000M adaptive RJ45 port, all ports can achieve line speed forwarding
- Provide 2*100/1000M built-in integrated optical port (optional single-mode single fiber/dual fiber, customizable FC)
- Adopting wavelength division multiplexing technology, the transmission wavelength is 1310nm, the reception wavelength is 1550nm, and the maximum transmission distance is up to 20KM
- Supports IEEE 802.3x full duplex flow control and Backpressure half duplex flow control
- Each port supports MDI/MDIX automatic flipping and duplex/rate self negotiation
01
view
detail
Full Gigabit 4+1 Fiber Switch
2025-03-29
- Provide 4*10/100/1000M adaptive RJ45 port, all ports can achieve line speed forwarding
- Provide 1*100/1000M built-in integrated optical port (optional single-mode single fiber/dual fiber, customizable FC)
- Adopting wavelength division multiplexing technology, the transmission wavelength is 1310nm, the reception wavelength is 1550nm, and the maximum transmission distance is up to 20KM
- Supports IEEE 802.3x full duplex flow control and Backpressure half duplex flow control
- Each port supports MDI/MDIX automatic flipping and duplex/rate self negotiation
01
view
detail
Full Gigabit 2+1 Fiber Switch
2025-03-29
- Provide2*10/100/1000M adaptive RJ45 port, all ports can achieve line speed forwarding
- Provide1*100/1000M built-in integrated optical port (optional single-mode single fiber/dual fiber, customizable FC)
- Adopting wavelength division multiplexing technology, the transmission wavelength is 1310nm, the reception wavelength is 1550nm, and the maximum transmission distance is up to 20KM
- Supports IEEE 802.3x full duplex flow control and Backpressure half duplex flow control
- Each port supports MDI/MDIX automatic flipping and duplex/rate self negotiation
01
view
detail

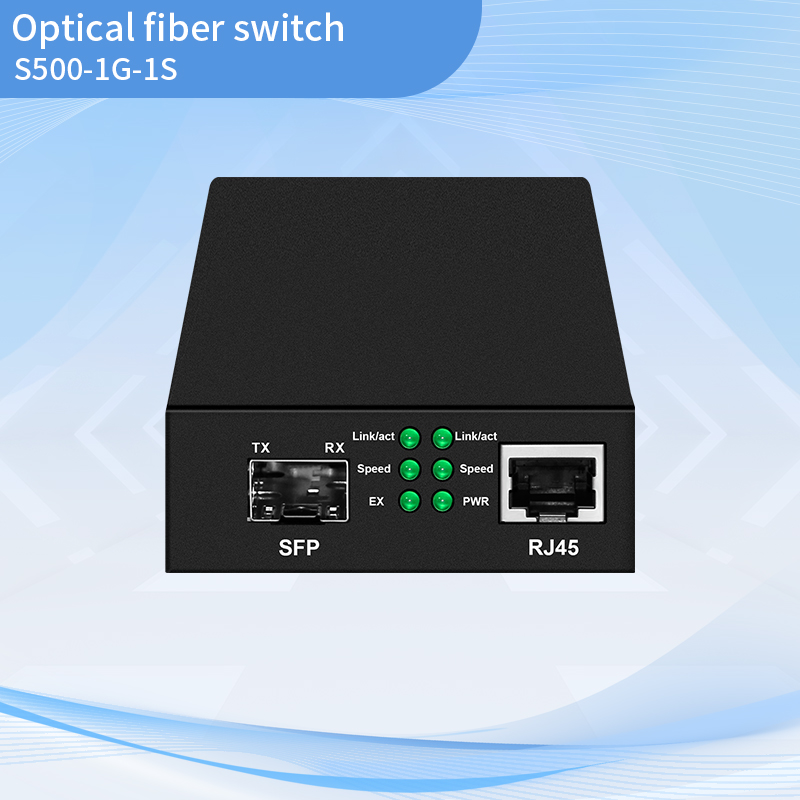

Full Gigabit 1+1 Fiber Switch
2025-03-29
- 1*10/100/1000Base-TX RJ45 port(Data)
- 1*1000M SFP
- Each port supports MDI/MDIX automatic flipping and duplex/rate self negotiation
- Supports IEEE 802.3x full duplex flow control and Backpressure half duplex flow control
- Support port lightning protection (Level 2 lightning protection requirement)
- Adopting a storage and forwarding exchange mechanism
- Supports full port standard detection function, and all ports supp
01
view
detail
Full Gigabit 1+1 Fiber Switch
2025-03-29
- Provide 1 10/100/1000M adaptive RJ45 port, all ports can achieve line speed forwarding
- Provide 1 100/1000M built-in integrated optical port (optional single-mode single fiber/dual fiber, customizable FC)
- Adopting wavelength division multiplexing technology, the transmission wavelength is 1310nm, the reception wavelength is 1550nm, and the maximum transmission distance is up to 20KM
- Supports IEEE 802.3x full duplex flow control and Backpressure half duplex flow control
- Each port supports MDI/MDIX automatic flipping and duplex/rate self negotiation
01
view
detail

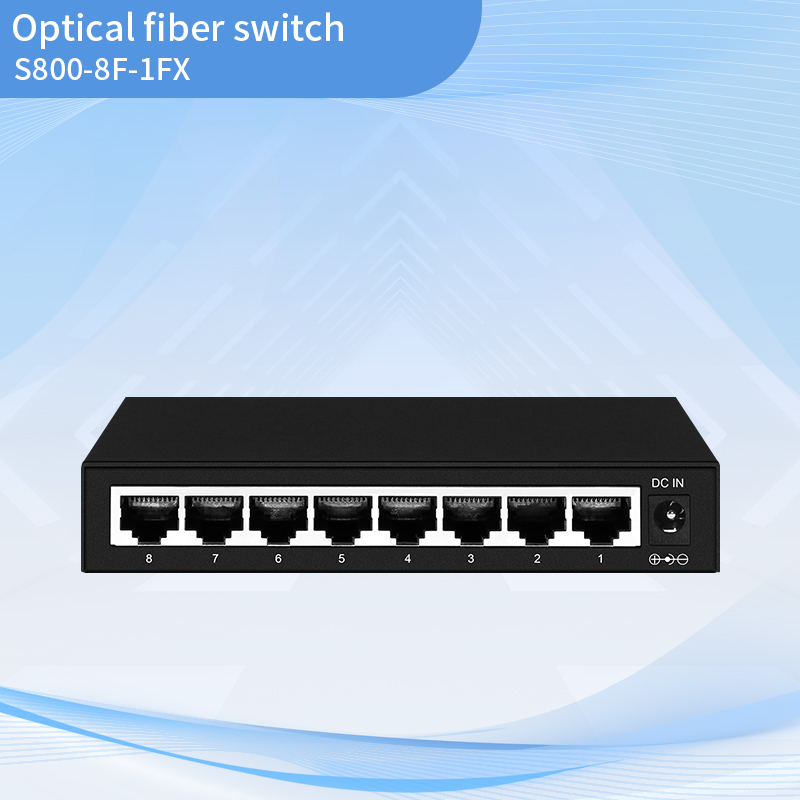

Fast Ethernet 8+1 Fiber Switch
2025-03-29
- Provide 8*10/100M adaptive RJ45 port, all ports can achieve line speed forwarding
- Provide 1*100M built-in integrated optical port (optional single-mode single fiber/dual fiber, customizable FC)
- Adopting wavelength division multiplexing technology, the transmission wavelength is 1310nm, the reception wavelength is 1550nm, and the maximum transmission distance is up to 20KM
- Supports IEEE 802.3x full duplex flow control and Backpressure half duplex flow control
- Each port supports MDI/MDIX automatic flipping and duplex/rate self negotiation
01
view
detail

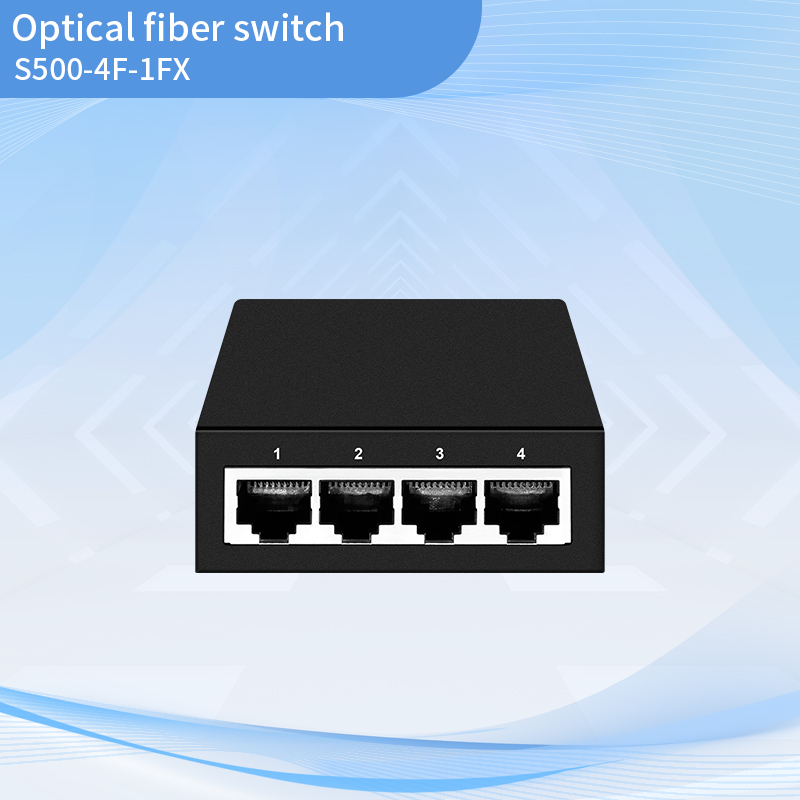

Fast Ethernet 4+1 Fiber Switch
2025-03-29
- Provide 4*10/100M adaptive RJ45 port, all ports can achieve line speed forwarding
- Provide 1*100M built-in integrated optical port (optional single-mode single fiber/dual fiber, customizable FC)
- Adopting wavelength division multiplexing technology, the transmission wavelength is 1310nm, the reception wavelength is 1550nm, and the maximum transmission distance is up to 20KM
- Supports IEEE 802.3x full duplex flow control and Backpressure half duplex flow control
- Each port supports MDI/MDIX automatic flipping and duplex/rate self negotiation
01
view
detail

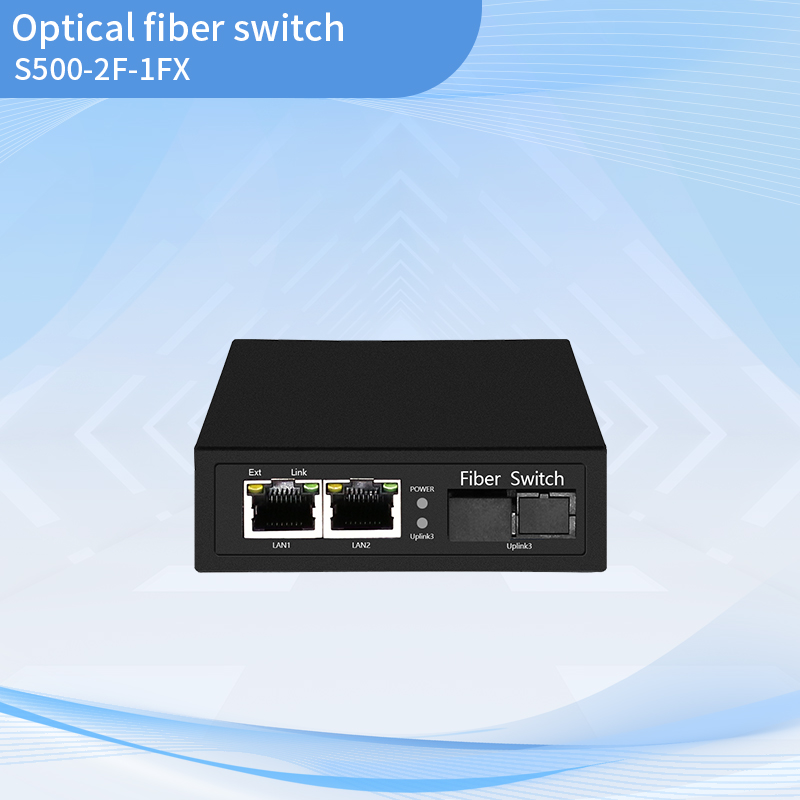

Fast Ethernet 2+1 Fiber Switch
2025-03-29
- Provide 2*10/100M adaptive RJ45 port, all ports can achieve line speed forwarding
- Provide 1*100M built-in integrated optical port (optional single-mode single fiber/dual fiber, customizable FC)
- Adopting wavelength division multiplexing technology, the transmission wavelength is 1310nm, the reception wavelength is 1550nm, and the maximum transmission distance is up to 20KM
- Supports IEEE 802.3x full duplex flow control and Backpressure half duplex flow control
- Each port supports MDI/MDIX automatic flipping and duplex/rate self negotiation
01
view
detail

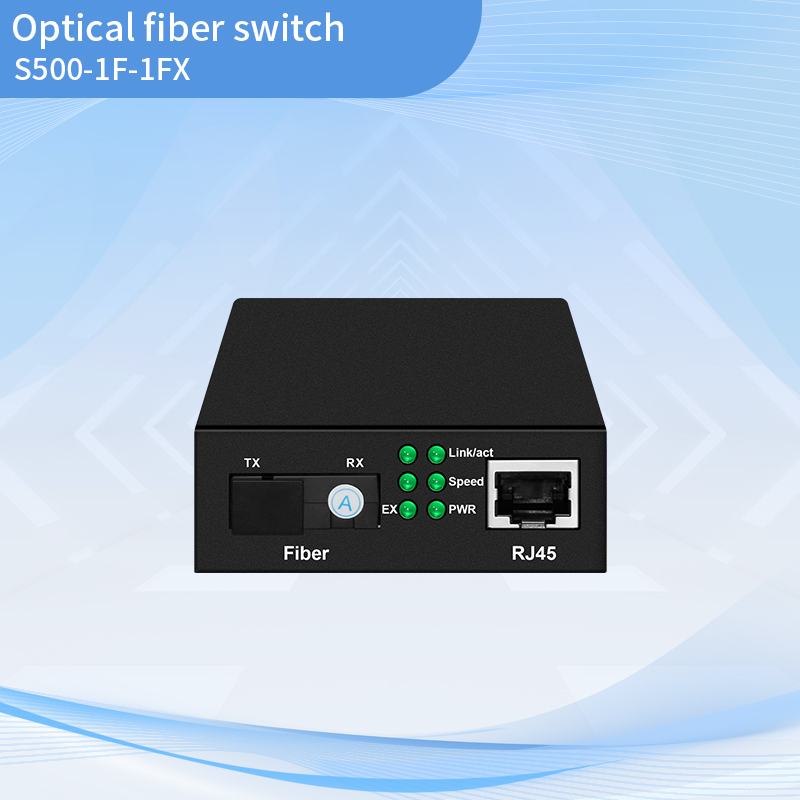

Fast Ethernet 1+1 Fiber Switch
2025-03-29
- Provide 1 10/100M adaptive RJ45 port, all ports can achieve line speed forwarding
- Provide 1 100M built-in integrated optical port (optional single-mode single fiber/dual fiber, customizable FC)
- Adopting wavelength division multiplexing technology, the transmission wavelength is 1310nm, the reception wavelength is 1550nm, and the maximum transmission distance is up to 20KM
- Supports IEEE 802.3x full duplex flow control and Backpressure half duplex flow control
- Each port supports MDI/MDIX automatic flipping and duplex/rate self negotiation
01
view
detail

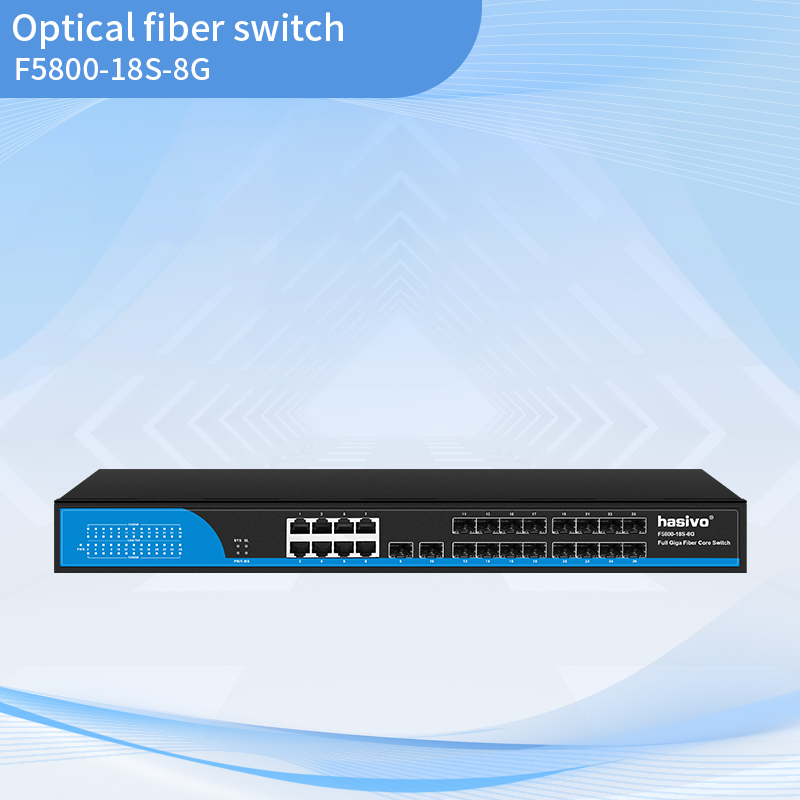

Full Gigabit 18+8 Fiber Switch
2025-03-26
- 8*10/100/1000Base-TX RJ45 port(Data)
- 18*1000M SFP
- Each port supports MDI/MDIX automatic flipping and duplex/rate self negotiation
- Supports IEEE 802.3x full duplex flow control and Backpressure half duplex flow control
- Support port lightning protection (Level 2 lightning protection requirement)
- Adopting a storage and forwarding exchange mechanism
- Supports full port standard detection function, and all ports support line speed switching
